Part number:
1N5247
Manufacturer:
JINAN JINGHENG
File Size:
70.02 KB
Description:
Silicon planar zener diodes
| Image | Manufacturer | B2B MPN | Description | Distributor | Stock | Quantity | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
 |
SMC Diode Solutions | 1N5247 | DIODE ZENER 17V 500MW DO35 | DigiKey | 0 | 250000 units |
$0.02
|
🛒 Buy Now |

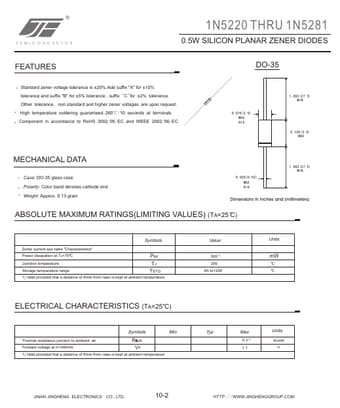

1N5247
JINAN JINGHENG
70.02 KB
Silicon planar zener diodes
* DO-35 Standard zener voltage tolerance is ±20%.Add suffix "A" for ±10% tolerance and suffix "B" for ±5% tolerance , suffix "C"for ±2% tolerance. Other tolerance, non standard and higher zener voltages are upon request. High temperature soldering guaranteed:260℃/10 seconds at terminals Component in
