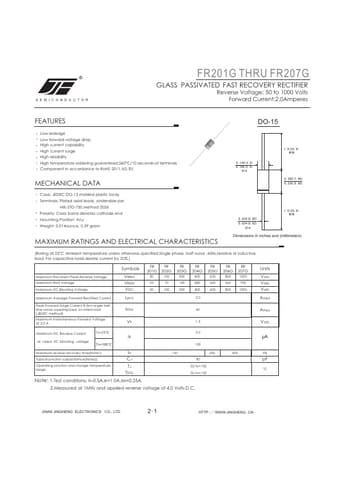

Part number:
FR203G
Manufacturer:
JINAN JINGHENG
File Size:
48.67 KB
Description:
Glass passivated fast recovery rectifier.
* DO-15 Low leakage Low forward voltage drop High current capability High current surge High reliability High temperature soldering guaranteed:260°C/10 seconds at terminals Component in accordance to RoHS 2011/65/EU MECHANICAL DATA 0.144(3.6) 0.104(2.6) DIA 1.0(25.4) MIN 0.300(7.60) 0.230(5.60) C
FR203G
JINAN JINGHENG
48.67 KB
Glass passivated fast recovery rectifier.
