LL700 - SMALL SIGNAL SCHOTTKY DIODES

Datasheet Summary

Features

  • Low forward voltage drop Satisfactory wave detection efficiency Small temperature coefficient of forward characteristics Extremely low reverse current These products are ideal for use in ordinary wave detection and super high speed switching circuits High temperature soldering guaranteed:260℃/10 seconds at terminals Component in accordance to RoHS 2011/65/EU.

📥 Download Datasheet

Datasheet preview – LL700

Datasheet Details

Part number LL700
Manufacturer JINAN JINGHENG
File Size 34.13 KB
Description SMALL SIGNAL SCHOTTKY DIODES
Datasheet download datasheet LL700 Datasheet

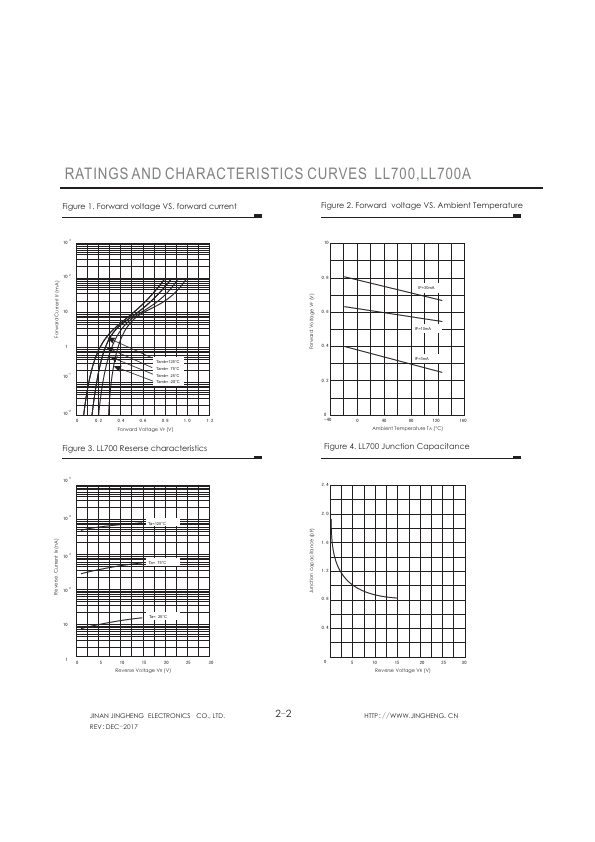

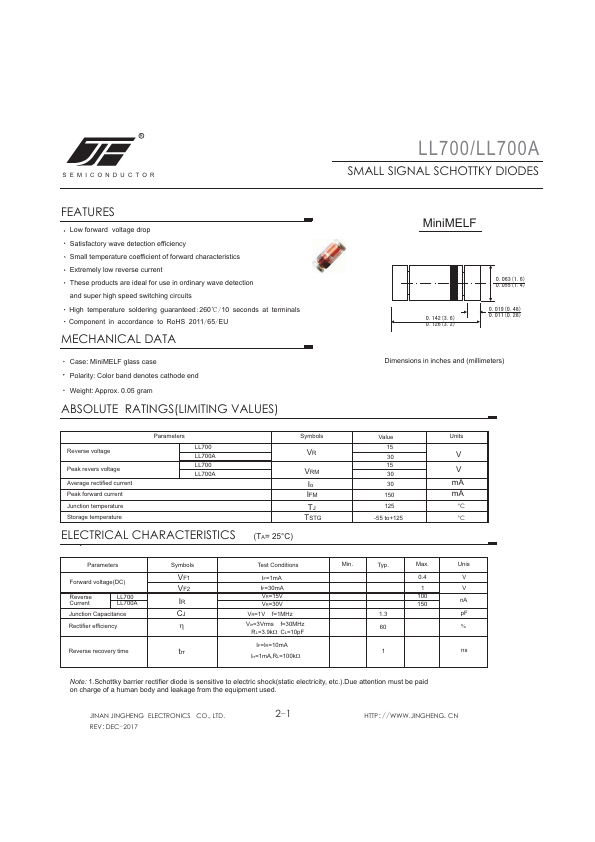

Additional preview pages of the LL700 datasheet.

📁 Similar Datasheet

  • LL700 - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
  • LL700 - SILICON EXPITAXIAL PLANAR TYPE SCHOTTKY BARRIER DIODES (SEMTECH ELECTRONICS)
  • LL700A - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
  • LL700A - SILICON EXPITAXIAL PLANAR TYPE SCHOTTKY BARRIER DIODES (SEMTECH ELECTRONICS)
Other Datasheets by JINAN JINGHENG
  • LL700A - SMALL SIGNAL SCHOTTKY DIODES

Full PDF Text Transcription

Click to expand full text
R SEMICONDUCTOR LL700/LL700A SMALL SIGNAL SCHOTTKY DIODES FEATURES Low forward voltage drop Satisfactory wave detection efficiency Small temperature coefficient of forward characteristics Extremely low reverse current These products are ideal for use in ordinary wave detection and super high speed switching circuits High temperature soldering guaranteed:260℃/10 seconds at terminals Component in accordance to RoHS 2011/65/EU MECHANICAL DATA Case: MiniMELF glass case Polarity: Color band denotes cathode end Weight: Approx. 0.05 gram ABSOLUTE RATINGS(LIMITING VALUES) MiniMELF 0.142(3.6) 0.126(3.2) 0.063(1.6) 0.055(1.4) 0.019(0.48) 0.011(0.
