M3Z15VC, M3Z2V0C - 0.3W SILICON PLANAR ZENER DIODES

Name: M3Z15VC
SKU: M3Z15VC-1584586

JINAN JINGHENG

The M3Z15VC by JINAN JINGHENG is a 0.3W SILICON PLANAR ZENER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	M3Z15VC, M3Z2V0C
Manufacturer	JINAN JINGHENG
File Size	783.98 KB
Description	0.3W SILICON PLANAR ZENER DIODES
Datasheet	M3Z2V0C-JINANJINGHENG.pdf
Note	This datasheet PDF includes multiple part numbers: M3Z15VC, M3Z2V0C. Please refer to the document for exact specifications by model.

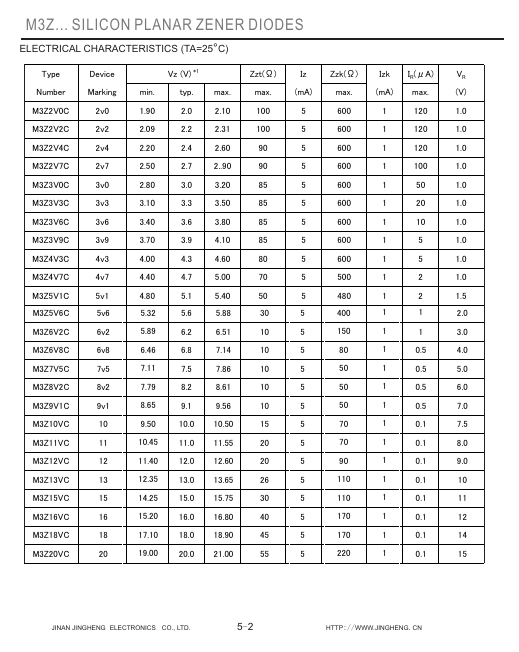

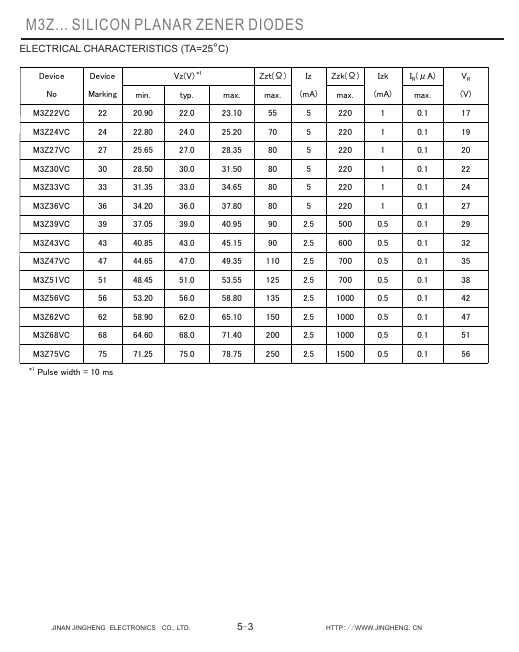

Additional preview pages of the M3Z15VC datasheet.

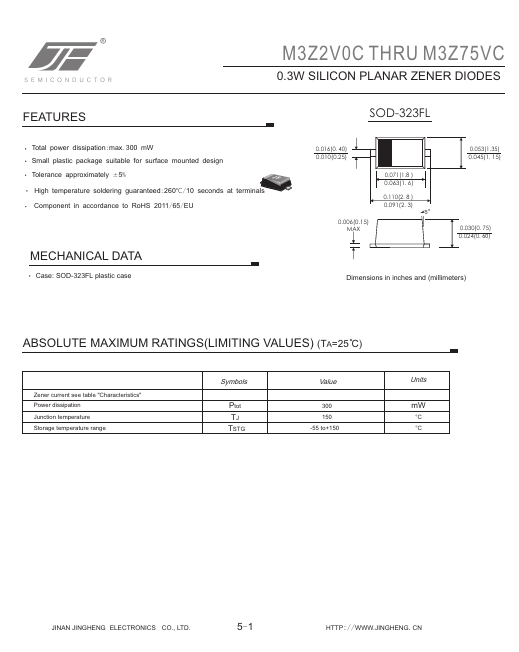

Total power dissipation:max.300 mW Small plastic package suitable for surface mounted design Tolerance approximately ±5% JF High temperature soldering guaranteed:260℃/10 seconds at terminals Component in accordance to RoHS 2011/65/EU.
