MUR3060P - ULTRAFAST RECOVERY RECTIFIER

MUR3060P Description

MUR3060P  RoHS COMPLIANT   Ultra-Fast Recovery Rectifier Diodes .

MUR3060P Features

* High frequency operation
* High surge forward current capability
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Solder dip 275 °C max. 7 s, per JESD 22

MUR3060P Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-247AD-2L Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD- 002 and JES

📥 Download Datasheet

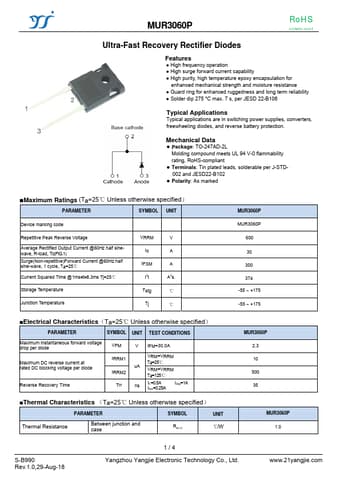

Preview of MUR3060P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR3060P
Manufacturer
JINAN JINGHENG
File Size
193.88 KB
Datasheet
MUR3060P-JINANJINGHENG.pdf
Description
ULTRAFAST RECOVERY RECTIFIER
