MUR3060PTL - Ultra-Fast Recovery Diode

MUR3060PTL Description

MUR3060PTL RoHS COMPLIANT Ultra-Fast Recovery Diodes 15A *2 FRED .

MUR3060PTL Features

* Adopt FRED chip
* Low forward Voltage drop
* Fast reverse recovery time
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability Ty

MUR3060PTL Applications

* Typical applications are in switching power supplies, . converters, freewheeling diodes, and reverse battery protection. Mechanical Data 1
* Package: TO-247AB 2 Molding compound meets UL 94 V-0 flammability 3 rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-

📥 Download Datasheet

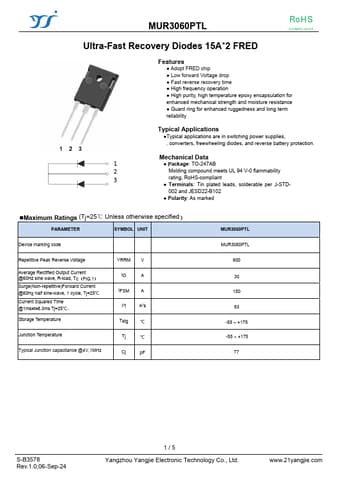

Preview of MUR3060PTL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR3060PTL
Manufacturer
Yangzhou Yangjie
File Size
240.32 KB
Datasheet
MUR3060PTL-YangzhouYangjie.pdf
Description
Ultra-Fast Recovery Diode
