SR150SF, SR120SF - SCHOTTKY BARRIER RECTIFIER

JINAN JINGHENG

Datasheet Details

Part number: SR150SF, SR120SF
Manufacturer: JINAN JINGHENG
File Size: 66.17 KB

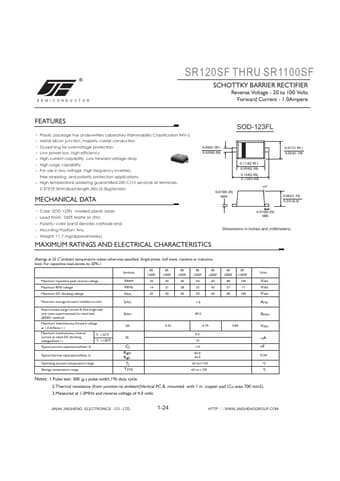

Datasheet: SR120SF-JINANJINGHENG.pdf
Description: SCHOTTKY BARRIER RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SR150SF, SR120SF.
Please refer to the document for exact specifications by model.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop JF High surge capability For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection.
