SR150S, SR120S - SCHOTTKY BARRIER RECTIFIER

Shunye

Datasheet Details

Part number: SR150S, SR120S
Manufacturer: Shunye
File Size: 950.70 KB

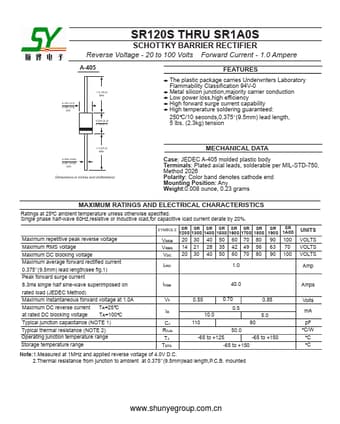

Datasheet: SR120S-Shunye.pdf
Description: SCHOTTKY BARRIER RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SR150S, SR120S.
Please refer to the document for exact specifications by model.

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction,majority carrier conduction Low power loss,high efficiency High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 0.025 (0.65) 0.021 (0.55) DIA. 1.0 (25.4) MIN. Dimensions in inches and (millimeters).
