SRF2080, SRF2020 - SCHOTTKY BARRIER RECTIFIER

Name: SRF2080
SKU: SRF2080-1265196

JINAN JINGHENG

The SRF2080 by JINAN JINGHENG is a SCHOTTKY BARRIER RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	SRF2080, SRF2020
Manufacturer	JINAN JINGHENG
File Size	64.43 KB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	SRF2020-JINANJINGHENG.pdf
Note	This datasheet PDF includes multiple part numbers: SRF2080, SRF2020. Please refer to the document for exact specifications by model.

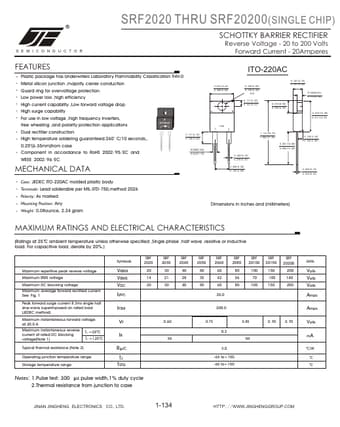

Additional preview pages of the SRF2080 datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop High surge capability For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection.
