HA22002PB, HA220XXPB Datasheet - JIYUAN INSTRUMENT

HA22002PB, HA220XXPB, High Voltage LED Constant Source IC

HA220XXPB High Voltage LED Constant Source IC General .
Constant current source IC is a kind of power supply converter with a constant current output.

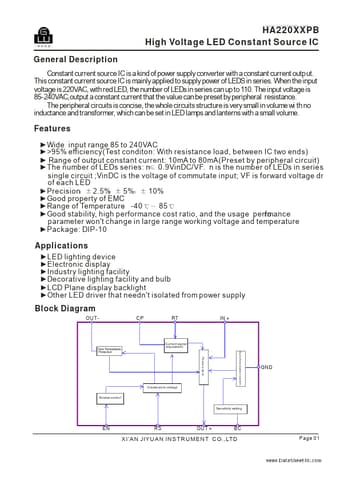

datasheet Preview Page 1 from Datasheet4u.com

HA220XXPB_JIYUANINSTRUMENT.pdf

HA22002PB Datasheet Preview — This datasheet PDF includes multiple part numbers: HA22002PB, HA220XXPB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HA22002PB, HA220XXPB

Manufacturer:

JIYUAN INSTRUMENT

File Size:

156.51 KB

Description:

High Voltage LED Constant Source IC

Note:

This datasheet PDF includes multiple part numbers: HA22002PB, HA220XXPB.
Please refer to the document for exact specifications by model.

Features

* Wide input range 85 to 240VAC
* >95% efficiency(Test conditon: With resistance load, between IC two ends)
* Range of output constant current: 10mA to 80mA(Preset by peripheral circuit)
* The number of LEDs series: n≤ 0.9VinDC/VF. n is the number of LEDs in series single circuit ;VinDC

Applications

* LED lighting device
* Electronic display
* Industry lighting facility
* Decorative lighting facility and bulb
* LCD Plane display backlight
* Other LED driver that needn't isolated from power supply Block Diagram OU TCP RT IN + Over Temperature Protection Current signal adjust
