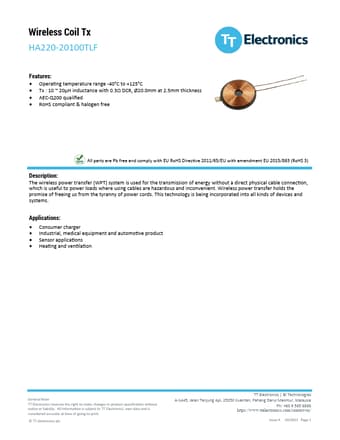

HA220-20100TLF datasheet, tx equivalent, TT

HA220-20100TLF Features and benefits

* Operating temperature range -40°C to +125°C
* Tx : 10 ~ 20µH inductance with 0.3Ω DCR, Ø20.0mm at 2.5mm thickness
* AEC-Q200 qualified
* RoHS compliant.

HA220-20100TLF Application

* Consumer charger
* Industrial, medical equipment and automotive product
* Sensor applications
* Heati.

HA220-20100TLF Description

The wireless power transfer (WPT) system is used for the transmission of energy without a direct physical cable connection, which is useful to power loads where using cables are hazardous and inconvenient. Wireless power transfer holds the promise o.
