4558E DUAL OPERATIONAL AMPLIFIER

The NJM4558 is a dual high-gain operational amplifier with internal compensation circuit and constructed on a single silicon chip. It offers excellent characteristics by combining the parameters adjusted for a monolithic chip. The channel separation characteristic is suitable for measuring instrumen.

4558E Features

* Operating Voltage

* High Voltage Gain

* High Input Resistance

* Bipolar Technology

* Package Outline ( ±4V~±18V ) ( 100dB typ. ) ( 5MΩ typ. ) DIP8, DMP8, SIP8 SOP8 JEDEC 150mil, SSOP8 NJM4558V ( SSOP8 ) NJM4558L ( SIP8 )

* PIN CONFIGURATION ( Top View ) 1 8 2 A 7

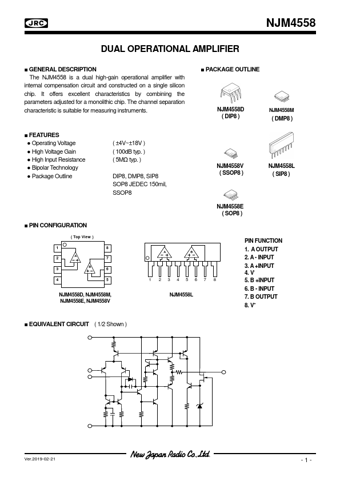

4558D-JRC.pdf

4558E Datasheet Preview — This datasheet PDF includes multiple part numbers: 4558E, 4558D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

4558E, 4558D

Manufacturer:

JRC

File Size:

120.96 KB

Description:

Dual operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: 4558E, 4558D.
Please refer to the document for exact specifications by model.
