4558V Datasheet, Amplifier, JRC

4558V Features

  • Amplifier
  • Operating Voltage
  • High Voltage Gain
  • High Input Resistance
  • Bipolar Technology
  • Package Outline ( ±4V~±18V ) ( 100dB typ. ) ( 5MΩ typ. )

PDF File Details

Part number:

4558V

Manufacturer:

JRC

File Size:

120.96kb

Download:

📄 Datasheet

Description:

Dual operational amplifier. The NJM4558 is a dual high-gain operational amplifier with internal compensation circuit and constructed on a single silicon chip. It

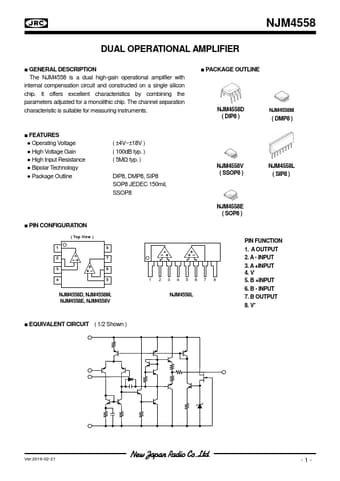

Datasheet Preview: 4558V 📥 Download PDF (120.96kb)
Page 2 of 4558V Page 3 of 4558V
