NJG1717KT2 Datasheet - JRC

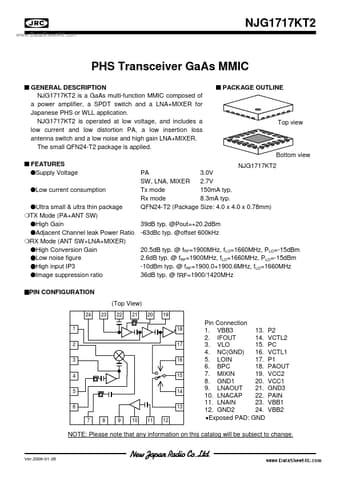

NJG1717KT2 PA+SPDT SW+LNA+Mixer / QFN24-T2

NJG1717KT2 is a GaAs multi-function MMIC composed of a power amplifier, a SPDT switch and a LNA+MIXER for Japanese PHS or WLL application. NJG1717KT2 is operated at low voltage, and includes a low current and low distortion PA, a low insertion loss antenna switch and a low noise and high gain LNA+MI.

NJG1717KT2 Features

* qSupply Voltage qLow current consumption qUltra small & ultra thin package ❍TX Mode (PA+ANT SW) qHigh Gain qAdjacent Channel leak Power Ratio ❍RX Mode (ANT SW+LNA+MIXER) qHigh Conversion Gain qLow noise figure qHigh input IP3 qImage suppression ratio sPIN CONFIGURATION (Top View) 24 1 2 3 4 5 6 7 8
