NJG1704, 800MHz BAND FRONT-END GaAs MMIC

NJG1704V 800MHz BAND FRONT-END GaAs MMIC nGENERAL .
NJG1704V is a front-end GaAs MMIC including a LNA, local amplifier and MIXER, designed mainly for 800MHz band cellular phone.

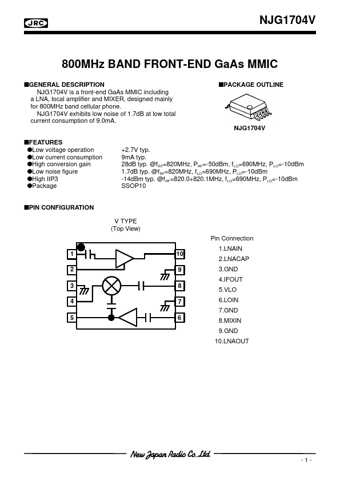

datasheet Preview Page 1 from Datasheet4u.com

NJG1704_NewJapanRadio.pdf

NJG1704 Datasheet Preview — Preview of NJG1704 PDF

Datasheet Details

Part number:

NJG1704

Manufacturer:

New Japan Radio

File Size:

340.44 KB

Description:

800MHz BAND FRONT-END GaAs MMIC

Features

* lLow voltage operation lLow current consumption lHigh conversion gain lLow noise figure lHigh IIP3 lPackage nPIN CONFIGURATION V TYPE (Top View) Pin Connection 1 2 3 4 5 10 9 8 7 6 1.LNAIN 2.LNACAP 3.GND 4.IFOUT 5.VLO 6.LOIN 7.GND 8.MIXIN 9.GND 10.LNAOUT nPACKAGE OUTLINE NJG1704V +2.7V typ. 9mA ty
