NJM2727

Dual Supply / DIP14 / EMP14

JRC

NJM2727 Features

* Operating Voltage

* Input Offset Voltage

* Output Voltage

* Unity Gain Bandwidth

* High Slew Rate

* Bipolar Technology

* Package Outline ± 4.5V to ± 18V VIO=4mV max. +

* ± 12V typ. (at RL=500Ω V /V = ±15V) 40MHz typ. +

* 300V/µs typ.

NJM2727 General Description

The NJM2727 is a high-speed, high operating voltage single operational amplifier. With 300V/µs slew rate, 40MHz unity gain bandwidth and 4mV input offset voltage the NJM2727 offers high performance. The NJM2727 operates on ±15V power supply for systems requiring large voltage swings, such as industr.

NJM2727 Datasheet (240.41 KB)

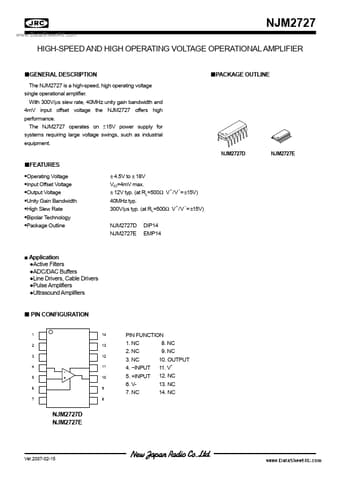

NJM2727 Datasheet Preview — Preview of NJM2727 PDF

Datasheet Details

Part number:

NJM2727

Manufacturer:

JRC

File Size:

240.41 KB

Description:

Dual supply / dip14 / emp14.
