NJM2760, Band Pass Filter

NJM2760 www.DataSheet4U.com Band Pass Filter for Spectrum Analyzer Display s GENERAL .
The NJM2760 is a band pass filter for spectrum analyzer display.

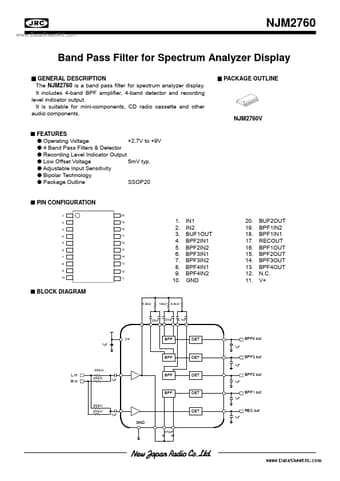

datasheet Preview Page 1 from Datasheet4u.com

NJM2760_JRC.pdf

NJM2760 Datasheet Preview — Preview of NJM2760 PDF

Datasheet Details

Part number:

NJM2760

Manufacturer:

JRC

File Size:

172.88 KB

Description:

Band Pass Filter

Features

* q Operating Voltage +2.7V to +9V q 4 Band Pass Filters & Detector q Recording Level Indicator Output q Low Offset Voltage 5mV typ. q Adjustable Input Sensitivity q Bipolar Technology q Package Outline SSOP20 s PIN CONFIGURATION 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 1. 2. 3. 4. 5. 6. 7
