NJM2769 Datasheet - New Japan Radio

NJM2769, HAEDPHONE AMPLIFIER for CD-ROM

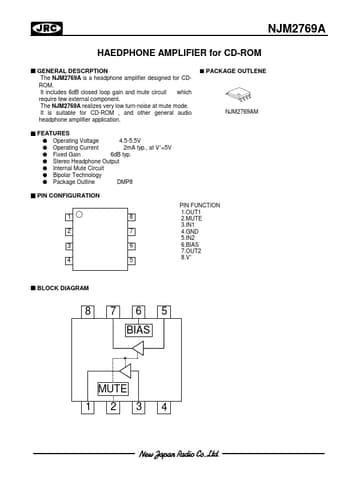

j HAEDPHONE AMPLIFIER for CD-ROM s GENERAL DESCRPTION The NJM2769A is a headphone amplifier designed for CDROM.It includes 6dB closed loop gain and m.

datasheet Preview Page 1 from Datasheet4u.com

NJM2769_NewJapanRadio.pdf

NJM2769 Datasheet Preview — Preview of NJM2769 PDF

Datasheet Details

Part number:

NJM2769

Manufacturer:

New Japan Radio

File Size:

101.22 KB

Description:

HAEDPHONE AMPLIFIER for CD-ROM

Features

* q q q q q q q Operating Voltage 4.5-5.5V + Operating Current 2mA typ. , at V =5V Fixed Gain 6dB typ. Stereo Headphone Output Internal Mute Circuit Bipolar Technology Package Outline DMP8 s PIN CONFIGURATION PIN FUNCTION 1.OUT1 2.MUTE 3.IN1 4.GND 5.IN2 6.BIAS 7.OUT2 + 8.V 1 2 3 4 8 7 6 5 s BLOCK D
