NJM2768B Datasheet - JRC

NJM2768B, Audio Amplifier / DMP8 / TVSP8

www.DataSheet4U.com NJM2768B HEADPHONE AMPLIFIER for CD-ROM ! GENERAL .
The NJM2768B is a headphone amplifier designed for CDROM.

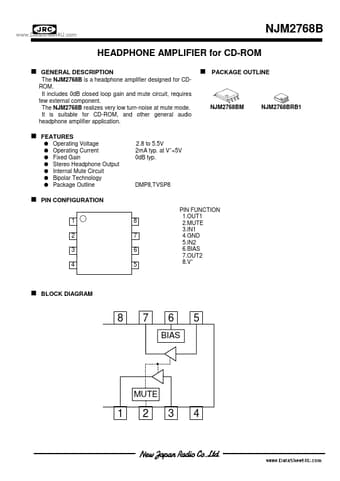

datasheet Preview Page 1 from Datasheet4u.com

NJM2768B_JRC.pdf

NJM2768B Datasheet Preview — Preview of NJM2768B PDF

Datasheet Details

Part number:

NJM2768B

Manufacturer:

JRC

File Size:

337.96 KB

Description:

Audio Amplifier / DMP8 / TVSP8

Features

* ! ! ! ! ! ! ! Operating Voltage Operating Current Fixed Gain Stereo Headphone Output Internal Mute Circuit Bipolar Technology Package Outline 2.8 to 5.5V + 2mA typ. at V =5V 0dB typ. DMP8,TVSP8 ! PIN CONFIGURATION PIN FUNCTION 1.OUT1 2.MUTE 3.IN1 4.GND 5.IN2 6.BIAS 7.OUT2 + 8.V 1 2 3 4 8 7 6
