RS5AC Fast Recovery Surface Mount Rectifiers

Description

JUXIN semiconductor Fast Recovery Surface Mount Rectifiers .

📥 Download Datasheet

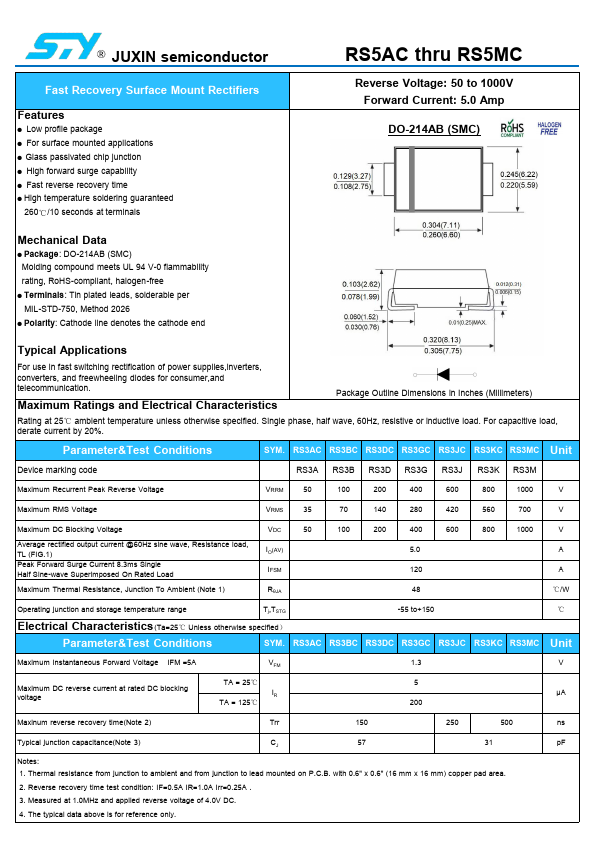

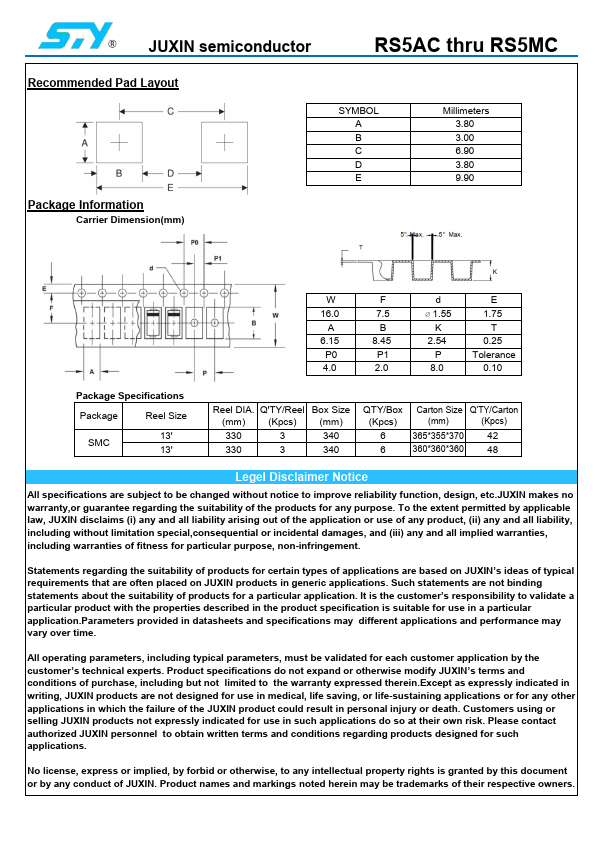

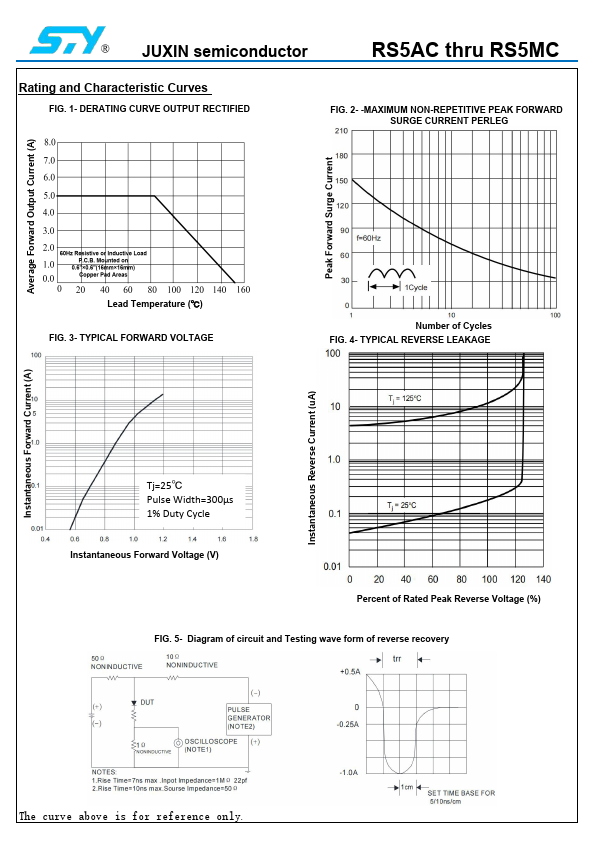

RS5AC Datasheet Preview — Preview of RS5AC PDF

Datasheet Specifications

Part number: RS5AC
Manufacturer: JUXIN
File Size: 632.37 KB
Datasheet: RS5AC-JUXIN.pdf
Description: Fast Recovery Surface Mount Rectifiers

Features

* Low profile package

Applications

* Glass passivated chip junction
* High forward surge capability
* Fast reverse recovery time
* High temperature soldering guaranteed 260℃/10 seconds at terminals RS5AC thru RS5MC Reverse Voltage: 50 to 1000V Forward Current: 5.0 Amp DO-214AB (SMC) Mechanical Data
* Package: DO
