S07A - General Purpose Surface Mount Rectifiers

S07A Description

JUXIN semiconductor General Purpose Surface Mount Rectifiers S07A thru S07M Reverse Voltage: 50 to 1000V Forward Current: 0.7 Amp .

S07A Features

* Low profile package

S07A Applications

* Glass passivated chip junction
* High forward surge capability
* High temperature soldering guaranteed 260℃/10 seconds at terminals SOD-123FL Mechanical Data
* Package: SOD-123FL Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Terminals: T

📥 Download Datasheet

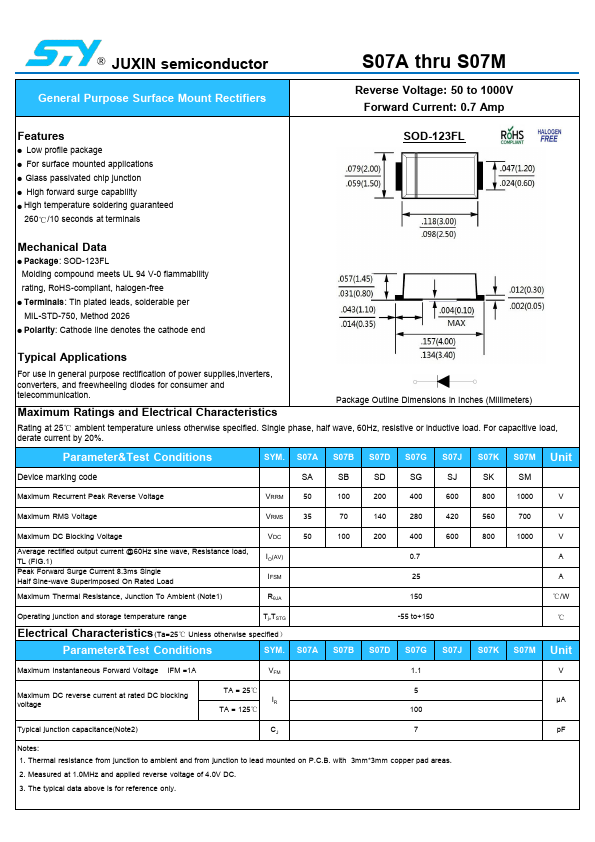

Preview of S07A PDF

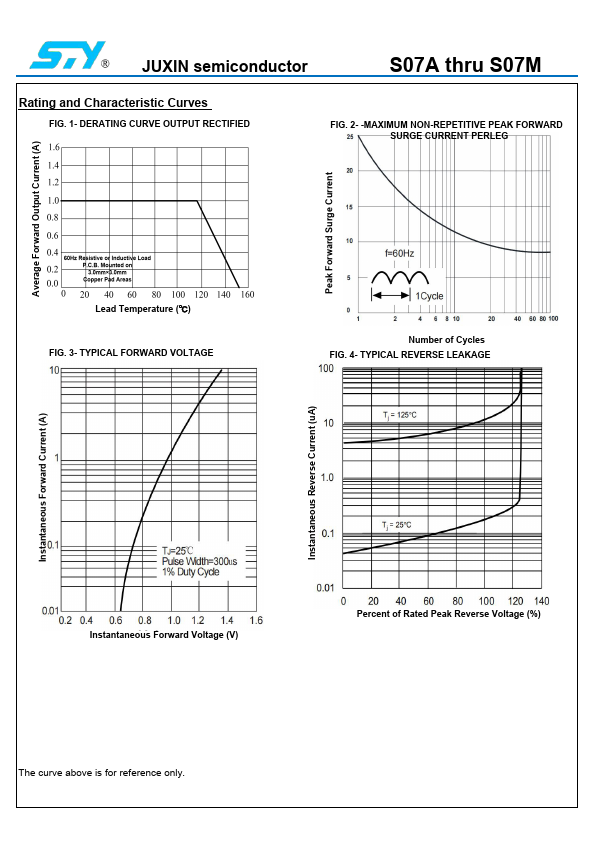

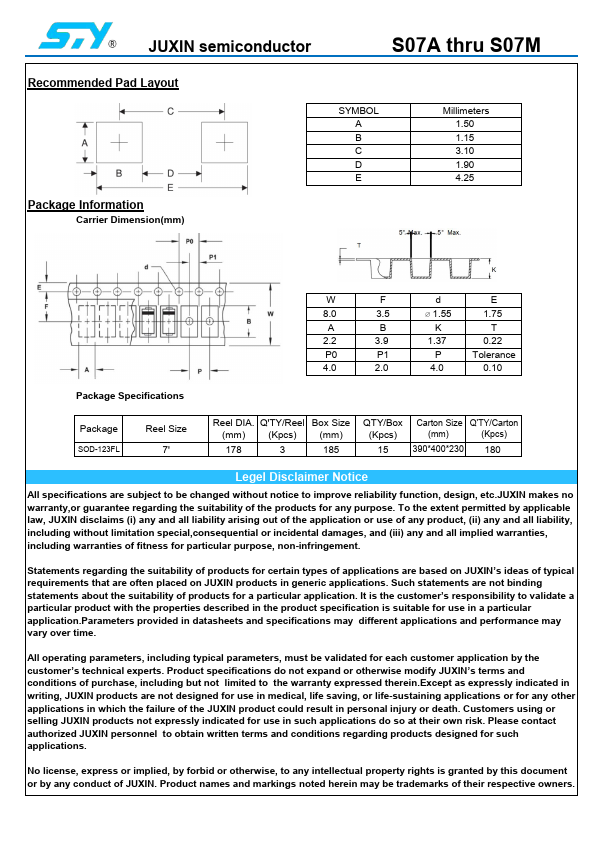

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S07A
Manufacturer
JUXIN
File Size
520.87 KB
Datasheet
S07A-JUXIN.pdf
Description
General Purpose Surface Mount Rectifiers
