S07B, S07A - General Purpose Surface Mount Rectifiers

S07B Description

JUXIN semiconductor General Purpose Surface Mount Rectifiers S07A thru S07M Reverse Voltage: 50 to 1000V Forward Current: 0.7 Amp .

S07B Features

* Low profile package

S07B Applications

* Glass passivated chip junction
* High forward surge capability
* High temperature soldering guaranteed 260℃/10 seconds at terminals SOD-123FL Mechanical Data
* Package: SOD-123FL Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Terminals: T

📥 Download Datasheet

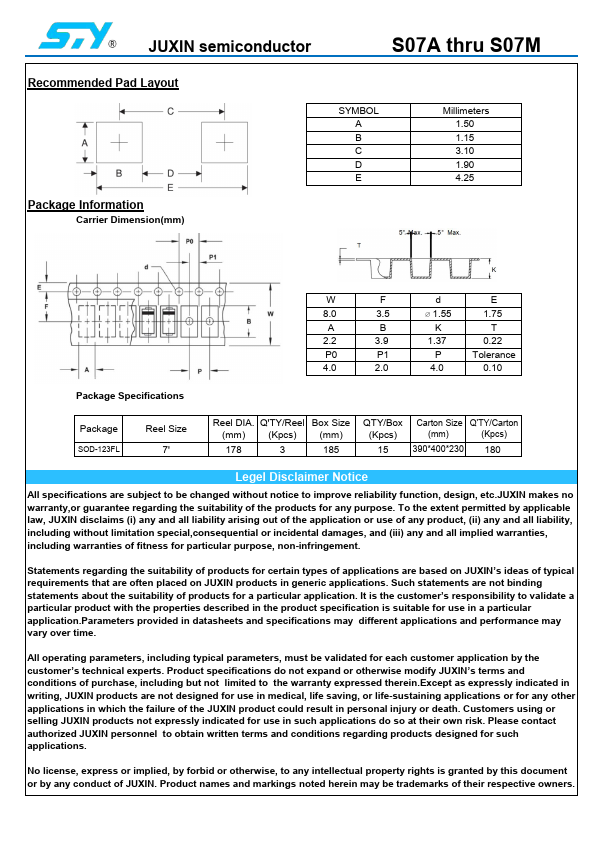

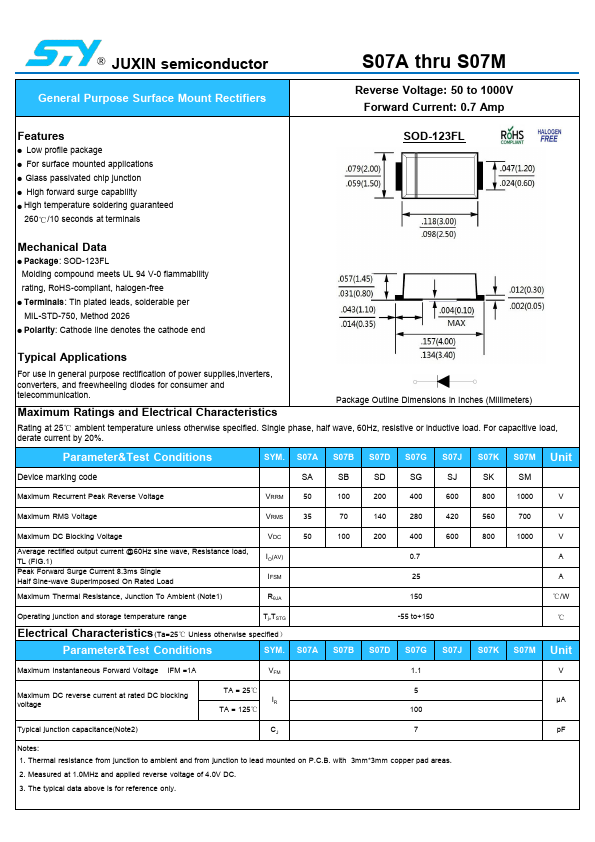

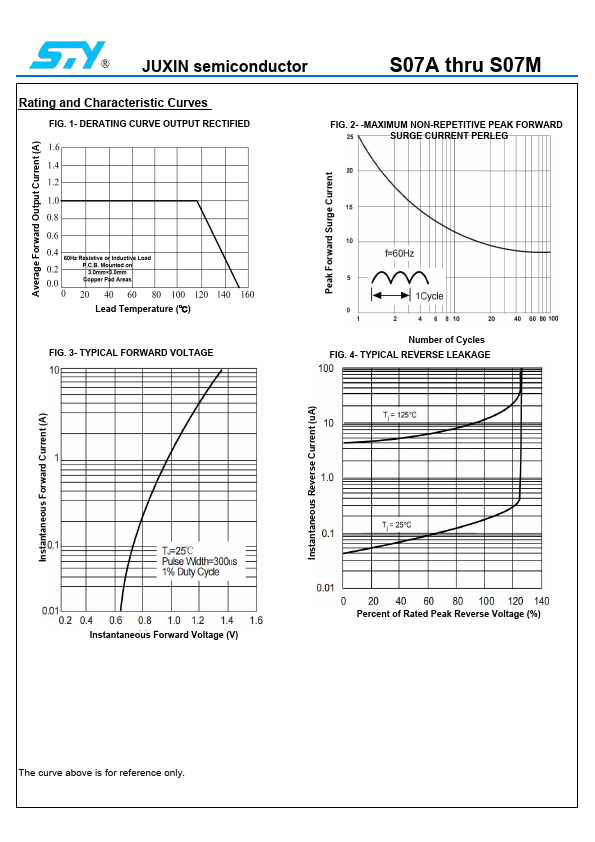

S07B Datasheet Preview — This datasheet PDF includes multiple part numbers: S07B, S07A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: S07B, S07A
Manufacturer: JUXIN
File Size: 520.87 KB
Datasheet: S07A-JUXIN.pdf
Description: General Purpose Surface Mount Rectifiers
Note: This datasheet PDF includes multiple part numbers: S07B, S07A.
Please refer to the document for exact specifications by model.
