SG24002-1G Datasheet - JWD

SG24002-1G 10/100/1000Base Transformer

Mianyang High-tech Zone Jingweida Science And Technology Co.,Ltd 10/100/1000Base Transformer Part Number:SG24002-1 G Compliant with IEEE 802.3 standard, Including 350 uH OCL with 8 mA bias. RoHS compliant. Operating temperature range :-0°C to +70°C. Storage temperature range: -0℃ to +85℃. Part Number Turns Ratio (±5%) TX RX Electrical Specifications @ 25°C OCL(uH Min) @100KHz/0.1V Insertion Loss (dB Max) with 8.0mA DC 1-100MHz SG24002-1 G 1CT:1CT 1CT:1CT 35.

SG24002-1G Datasheet (109.89 KB)

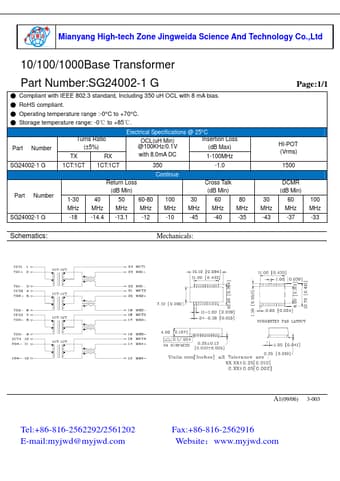

SG24002-1G Datasheet Preview — Preview of SG24002-1G PDF

Datasheet Details

Part number:

SG24002-1G

Manufacturer:

JWD

File Size:

109.89 KB

Description:

10/100/1000base transformer.
