CJ7808F - Three-terminal positive voltage regulator

CJ7808F Description

www.DataSheet4U.com JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-220F CJ7808F Plastic-Encapsulate voltage regulator TO-220F Three-termina.

CJ7808F Features

* Maximum Output current IOM: 1.5 A Output voltage Vo: 8 V 1.IN 2.GND 3.OUT ABSOLUTE MAXIMUM RATINGS Parameter Input Voltage (Operating temperature range applies unless otherwise specified) Symbol Vi TOPR TSTG Value 35 0 to 150 -65 to 150 Unit V ℃ ℃ Operating Junction Temperature Range Storage Tem

📥 Download Datasheet

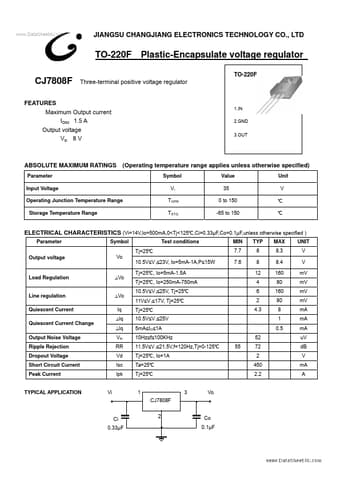

Preview of CJ7808F PDF
