CJ7805B - Three Terminal Voltage Regulator

CJ7805B Description

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD Wide Input Voltage Three Terminal Positive Voltage Regulator CJ7805B Three Terminal Voltage Regulat.

CJ7805B Features

* Output Current: up to 1A with good power dissipation
* Fixed 5.0V Output Voltage
* Output Voltage Tolerance: ±2% at TJ = 25°C ±4% over the Operating TJ
* Operating Junction Temperature: -40 ~ 125°C
* Output Transistor SOA Protection
* Short Circuit P

CJ7805B Applications

* including local on-card adjustment. The CJ7805B is internally integrated with current limit, thermal shutdown protection and safety zone compensation, making it almost immune to the impact of output overload. If sufficient heat dissipation is provided, these regulators can provide up to 1A output c

📥 Download Datasheet

Preview of CJ7805B PDF

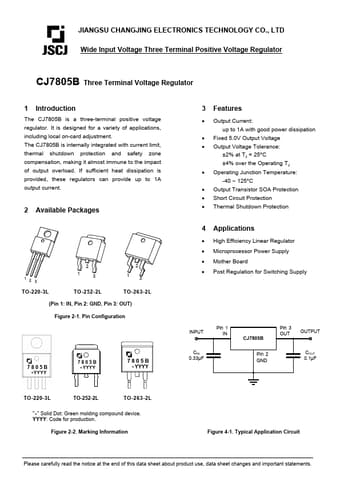

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CJ7805B
Manufacturer
JCET
File Size
1.41 MB
Datasheet
CJ7805B-JCET.pdf
Description
Three Terminal Voltage Regulator
