CJ7550S 300mA CMOS Voltage Regulator

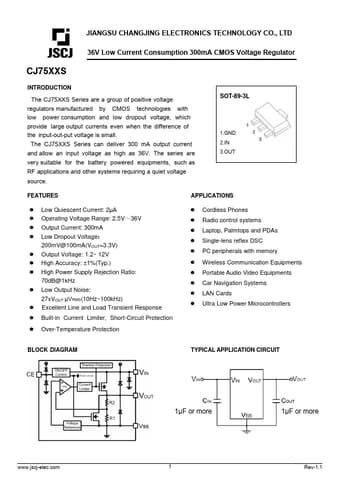

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD 36V Low Current Consumption 300mA CMOS Voltage Regulator CJ75XXS INTRODUCTION The CJ75XXS Series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-out-put voltage is small. The CJ75XXS Series can deliver 300 mA output current and allow an input voltage as high as 36V. The series are very suita.

CJ7550S Features

* APPLICATIONS

* Low Quiescent Current: 2μA

* Operating Voltage Range: 2.5V～36V

* Output Current: 300mA

* Low Dropout Voltage： 200mV@100mA(VOUT=3.3V)

* Output Voltage: 1.2~ 12V

* High Accuracy: ±1%(Typ.)

* High Power Supply Rejection Ratio: 70dB@1kHz

* Low Output Nois

CJ7533S-JCET.pdf

CJ7550S Datasheet Preview — This datasheet PDF includes multiple part numbers: CJ7550S, CJ7533S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CJ7550S, CJ7533S

Manufacturer:

JCET

File Size:

1.23 MB

Description:

300ma cmos voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: CJ7550S, CJ7533S.
Please refer to the document for exact specifications by model.
