JT050N065WED

N-CHANNEL IGBT

JT050N065WED Features

* Low gate charge

* Trench FS Technology,

* RoHS product ORDER MESSAGE Order codes - Halogen-Tube JT050N065WED-GE-B - Halogen-Free-Tube JT050N065WED-GE-BR - Halogen-Reel N/A - Halogen-Free-Reel N/A Marking JT050N065WED Package TO-247 ：202112D 1/11 R ABSOLUTE RATINGS (Tc=2

JT050N065WED Datasheet (1.03 MB)

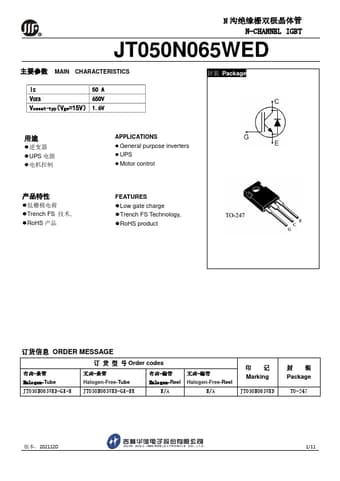

Preview of JT050N065WED PDF

Datasheet Details

Part number:

JT050N065WED

Manufacturer:

Jilin Sino

File Size:

1.03 MB

Description:

N-channel igbt.
N N-CHANNEL IGBT R JT050N065WED MAIN CHARACTERISTICS IC 50 A VCES 650V Vcesat-ty（p Vge=15V） 1.6V Package
*
*UPS
* APPLICATIO.
