DTA124EE

The DTA124EE is PNP Digital transistors designed by JinYu.

Product Overview

JinYu

📥 Download Datasheet

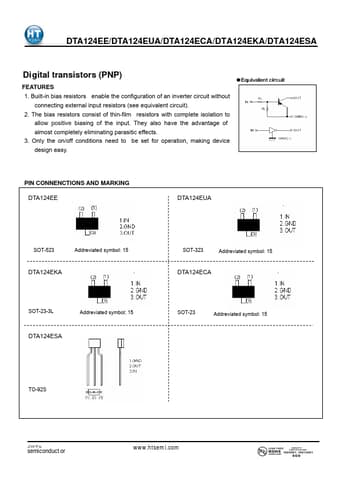

DTA124EE PNP Digital transistors by JinYu - Datasheet Preview — Datasheet preview – DTA124EE

Datasheet Details

Part number	DTA124EE
Manufacturer	JinYu
File Size	335.71 KB
Description	PNP Digital transistors
Datasheet	DTA124EE-JinYu.pdf
Additional preview pages of the DTA124EE datasheet.

Product details

Features

1. Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2. The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3. Only the on/off conditions need to be set for operation, making device design easy. PIN.
