DTA114TKA - PNP Transistor

Product Overview

JinYu

📥 Download Datasheet

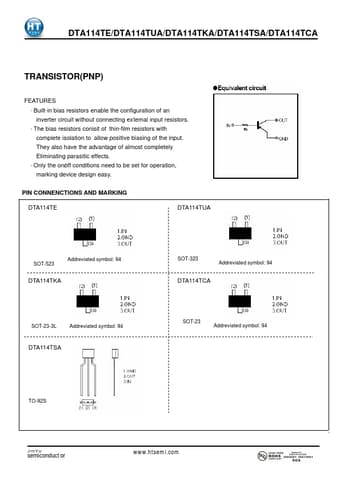

DTA114TKA PNP Transistor by JinYu - Datasheet Preview — Datasheet preview – DTA114TKA

Datasheet Details

Part number	DTA114TKA
Manufacturer	JinYu
File Size	337.96 KB
Description	PNP Transistor
Datasheet	DTA114TKA Datasheet
Note	This datasheet PDF includes multiple part numbers: DTA114TKA, DTA114TE. Please refer to the document for exact specifications by model.
Additional preview pages of the DTA114TKA datasheet.

Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting ex temal input resistors.
The bias resistors conisit of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely Eliminating parasitic effects.
Only the ono/ ff conditions need to be set for operation, marking device design easy. PIN.
