DTA114YCA - PNP Transistor

Product Overview

JinYu

📥 Download Datasheet

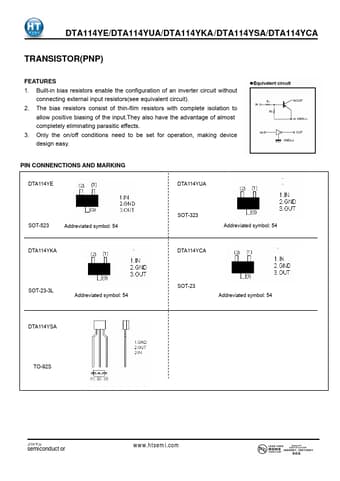

DTA114YCA PNP Transistor by JinYu - Datasheet Preview — Datasheet preview – DTA114YCA

Datasheet Details

Part number	DTA114YCA
Manufacturer	JinYu
File Size	379.38 KB
Description	PNP Transistor
Datasheet	DTA114YCA Datasheet
Note	This datasheet PDF includes multiple part numbers: DTA114YCA, DTA114YE. Please refer to the document for exact specifications by model.
Additional preview pages of the DTA114YCA datasheet.

Product details

Features

1. Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit). 2. The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3. Only the on/off conditions need to be set for operation, making device design easy. PIN.
