1SMAF4744A, 1SMAF4728A Datasheet - Jingdao Microelectronics

1SMAF4744A Silicon Planar Zener Diodes

1 Cathode 2 Anode MECHANICAL DATA * Case: SMAF * Terminals: Solderable per MIL-STD-750, Method 2026 * Approx. Weight: 27mg 0.00095oz 12 Simplified outline SMAF and symbol Absolute Maximum Ratings And Characteristics （Ta = 25 °C） Parameter Power Dissipation at Tc=75°C Forw.

1SMAF4728A-JingdaoMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: 1SMAF4744A, 1SMAF4728A. Please refer to the document for exact specifications by model.

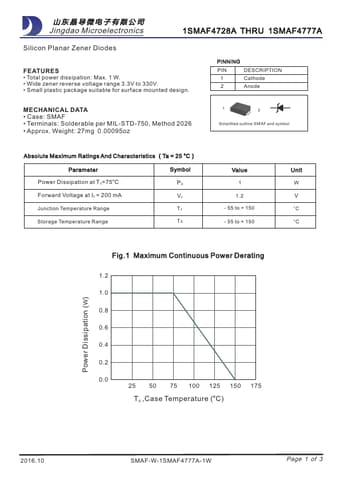

1SMAF4744A Datasheet Preview Page 2 1SMAF4744A Datasheet Preview Page 3

Datasheet Details

Part number:

1SMAF4744A, 1SMAF4728A

Manufacturer:

Jingdao Microelectronics

File Size:

71.81 KB

Description:

Silicon planar zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1SMAF4744A, 1SMAF4728A.
Please refer to the document for exact specifications by model.
