ES2BBF - Surface Mount Superfast Recovery Rectifier

1 Cathode 2 Anode 12 Simplified outline SMBF and symbol Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Parameter Symbols ES2ABF E

ES2BBF Features

* For surface mounted applications

* Low profile package

* Glass Passivated Chip Junction

* Superfast reverse recovery time

* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA

* Case: SMBF

* Terminals: Solderable per MIL-ST

ES2ABF-JingdaoMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: ES2BBF, ES2ABF. Please refer to the document for exact specifications by model.

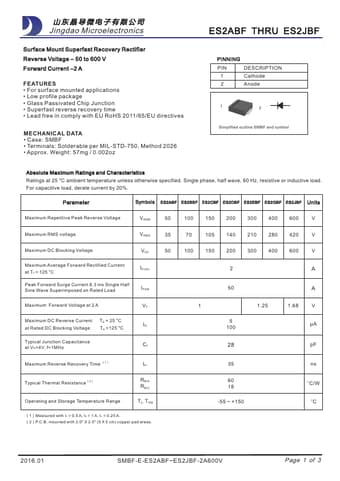

ES2BBF Datasheet Preview Page 2 ES2BBF Datasheet Preview Page 3
