ES2BALH - Super Fast Surface Mount Rectifier

ES2BALH Description

ES2BALH * ES2JALH Taiwan Semiconductor 2A, 100V - 600V Super Fast Surface Mount Rectifier .

ES2BALH Features

* AEC-Q101 qualified
* Glass passivated chip junction
* Ideal for automated placement
* Low power loss, high efficiency
* Low profile package
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant

ES2BALH Applications

* Freewheeling
* Snubber
* DC/DC converters
* Automotive application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM TJ MAX Package 2 A 100 - 600 V 50 A 150 °C Thin SMA Configuration Single die MECHANICAL DATA
* Case: Thin SMA
* Molding compound meets UL 94V-0

📥 Download Datasheet

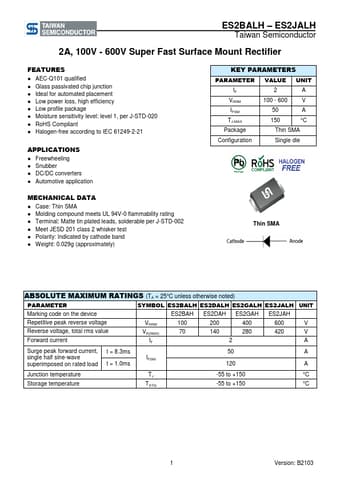

Preview of ES2BALH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ES2BALH
Manufacturer
Taiwan Semiconductor
File Size
462.98 KB
Datasheet
ES2BALH-TaiwanSemiconductor.pdf
Description
Super Fast Surface Mount Rectifier
