MM3Z22W, MM3Z2V0W - Silicon Planar Zener Diodes

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MM3Z22W, MM3Z2V0W. Please refer to the document for exact specifications by model.

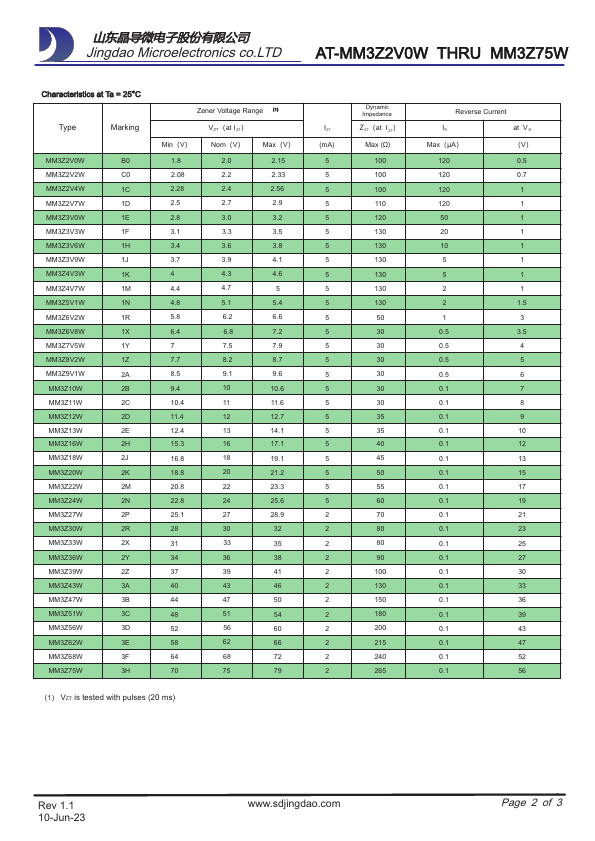

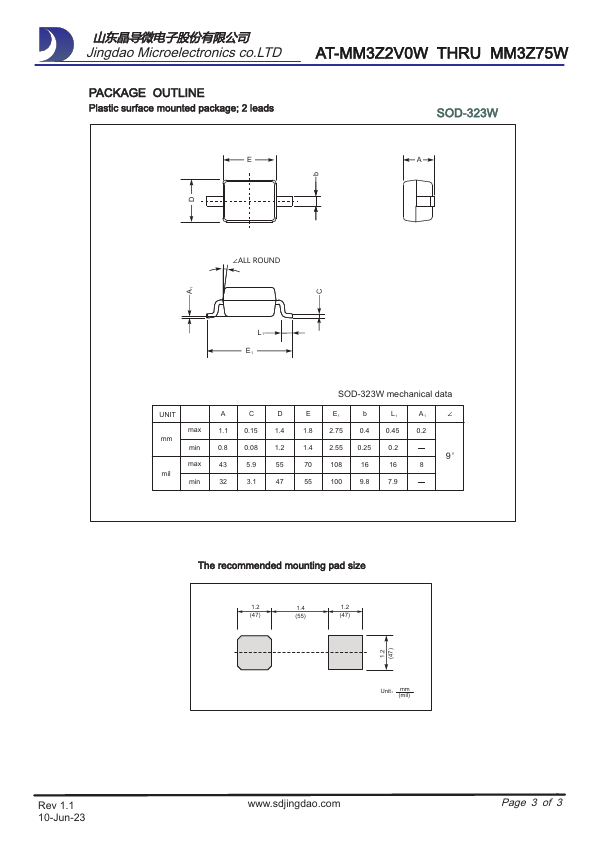

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number MM3Z22W, MM3Z2V0W
Manufacturer Jingdao Microelectronics
File Size 96.46 KB
Description Silicon Planar Zener Diodes
Datasheet download datasheet MM3Z2V0W-JingdaoMicroelectronics.pdf
Note This datasheet PDF includes multiple part numbers: MM3Z22W, MM3Z2V0W.
Please refer to the document for exact specifications by model.

MM3Z22W Product details

Description

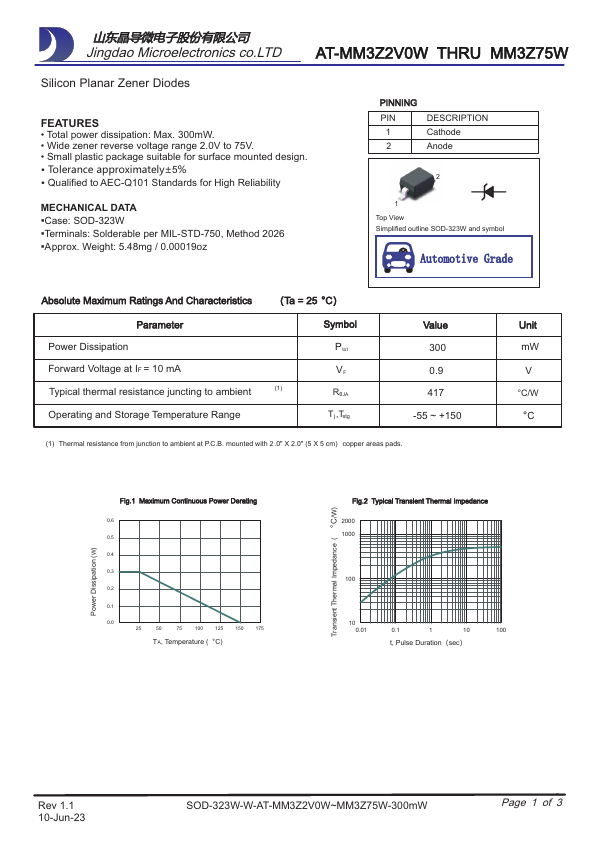

1 Cathode 2 Anode 2 1 Top View Simplified outline SOD-323W and symbol Value Unit Absolute Maximum Ratings And Characteristics Parameter Power Dissipation Forward Voltage at IF = 10 mA Typical thermal resistance juncting to ambient Operating and Storage Temperature Range （Ta = 25 °C） Symbol P tot VF (1) RθJA T j ,Tstg Value 300 0.9 417 -55 ~ +150 (1) Thermal resistance from junction to ambient at P.C.B.mounted with 2 .0" X 2.0" (5 X 5 cm) copper areas pads.Unit mW V °C/W °C Power
