MM3Z2V0W - Silicon Planar Zener Diodes

MM3Z2V0W Datasheet Preview — Preview of MM3Z2V0W PDF

Datasheet Details

Part number	MM3Z2V0W
Manufacturer	Jingdao Microelectronics
File Size	96.46 KB
Description	Silicon Planar Zener Diodes
Datasheet	MM3Z2V0W-JingdaoMicroelectronics.pdf

MM3Z2V0W Product details

Description

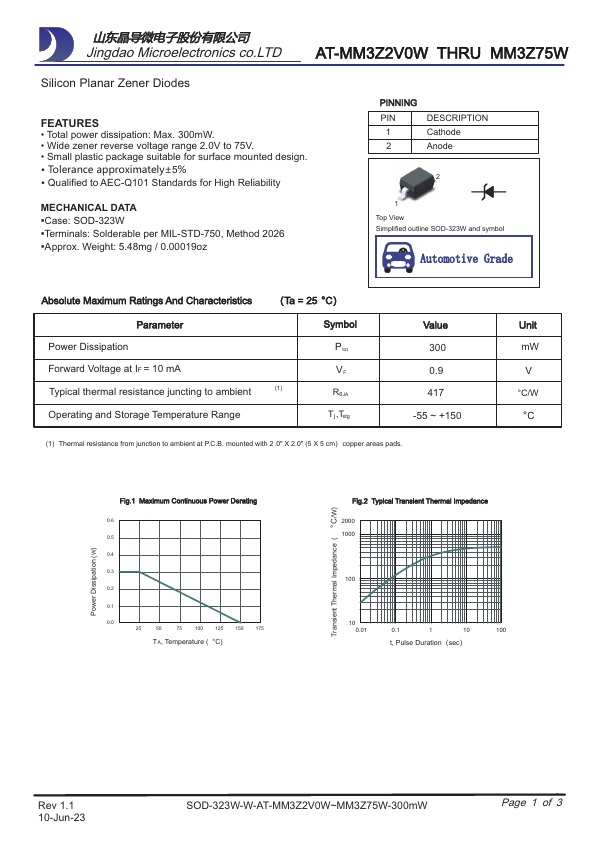

1 Cathode 2 Anode 2 1 Top View Simplified outline SOD-323W and symbol Value Unit Absolute Maximum Ratings And Characteristics Parameter Power Dissipation Forward Voltage at IF = 10 mA Typical thermal resistance juncting to ambient Operating and Storage Temperature Range （Ta = 25 °C） Symbol P tot VF (1) RθJA T j ,Tstg Value 300 0.9 417 -55 ~ +150 (1) Thermal resistance from junction to ambient at P.C.B.mounted with 2 .0" X 2.0" (5 X 5 cm) copper areas pads.Unit mW V °C/W °C Power

Features

Total power dissipation: Max. 300mW.
Wide zener reverse voltage range 2.0V to 75V.
Small plastic package suitable for surface mounted design.
Tolerance approximately±5%.
Qualified to AEC-Q101 Standards for High Reliability.
