B5817WSFL SCHOTTKY BARRIER RECTIFIERS

1 Cathode 2 Anode 2 1 Top View Marking Code: B5817WSFL *-SJ B5818WSFL *-SK B5819WSFL *-SL Simplified outline SOD-323FL and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Parameter Symbols B5817WSFL B5818W.

B5817WSFL Features

* Metal silicon junction, majority carrier conduction

* Guarding for overvoltage protection

* Low power loss, high efficiency

* High current capability

* low forward voltage drop

* High surge capability

* For use in low voltage, high frequency

B5817WSFL-Jingdao.pdf

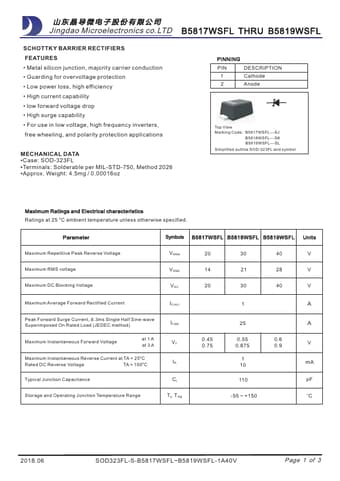

B5817WSFL Datasheet Preview — Preview of B5817WSFL PDF

Datasheet Details

Part number:

B5817WSFL

Manufacturer:

Jingdao

File Size:

72.54 KB

Description:

Schottky barrier rectifiers.
