B5819WSFL - SCHOTTKY BARRIER RECTIFIERS

Product Overview

Jingdao

Datasheet Details

Part number	B5819WSFL
Manufacturer	Jingdao
File Size	72.54 KB
Description	SCHOTTKY BARRIER RECTIFIERS
Datasheet	B5819WSFL Datasheet
Note	This datasheet PDF includes multiple part numbers: B5819WSFL, B5817WSFL. Please refer to the document for exact specifications by model.

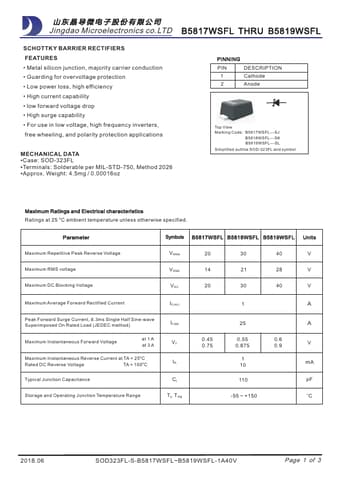

Additional preview pages of the B5819WSFL datasheet.

Product details

Description

1 Cathode 2 Anode 2 1 Top View Marking Code: B5817WSFL---SJ B5818WSFL---SK B5819WSFL---SL Simplified outline SOD-323FL and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Parameter Symbols B5817WSFL B5818WSFL B5819WSFL Units Maximum Repetitive Peak Reverse Voltage Maximum RMS voltage Maximum DC Blocking Voltage VRR

Features

Metal silicon junction, majority carrier conduction.
Guarding for overvoltage protection.
Low power loss, high efficiency.
High current capability.
low forward voltage drop.
High surge capability.
For use in low voltage, high frequency inverters, free wheeling, and polarity protection.
