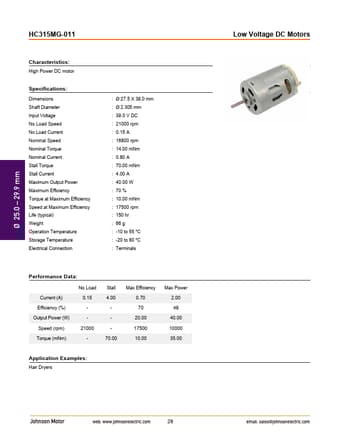

HC315MG-011 Datasheet - Johnson Motor

HC315MG-011 Low Voltage DC Motor

Ø 25.0 29.9 mm HC315MG-011 Characteristics: High Power DC motor Specifications: Dimensions Shaft Diameter Input Voltage No Load Speed No Load Current Nominal Speed Nominal Torque Nominal Current Stall Torque Stall Current Maximum Output Power Maximum Efficiency Torque at Maximum Efficiency Speed at Maximum Efficiency Life (typical) Weight Operation Temperature Storage Temperature Electrical Connection : Ø 27.5 X 38.0 mm : Ø 2.305 mm : 39.0 V DC : 21000 rpm : 0.15 A : 16800 rpm : 14..

HC315MG-011-JohnsonMotor.pdf
