JW15328A High Efficiency Off-line CV Regulator

JW15328A Description

JW15328A High Efficiency Off-line CV Regulator .
The JW15328A is a high efficiency low cost off-line constant voltage regulator for Buck and Buck- Boost topology with 650V MOSFET.

JW15328A Features

* Ultra Low System BOM Cost
* Integrated with 650V, Low Rdson MOSFET
* 12V Default Output Voltage
* Support Buck and Buck-Boost Topology
* Peak Current Mode Control
* Frequency Jittering for Good EMC
* High Efficiency Over Wide Operating Range
* Output Voltage Load Re

JW15328A Applications

* Home Appliance
* Standby Power
* Consumer Electronics TYPICAL APPLICATION NC VDD NC JW15328A DRAIN GND Vo DRAIN GND AC IN JW15328A Rev.0.21 2022/03/01 JoulWatt Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. 1 / 10 JW15328A

📥 Download Datasheet

Preview of JW15328A PDF

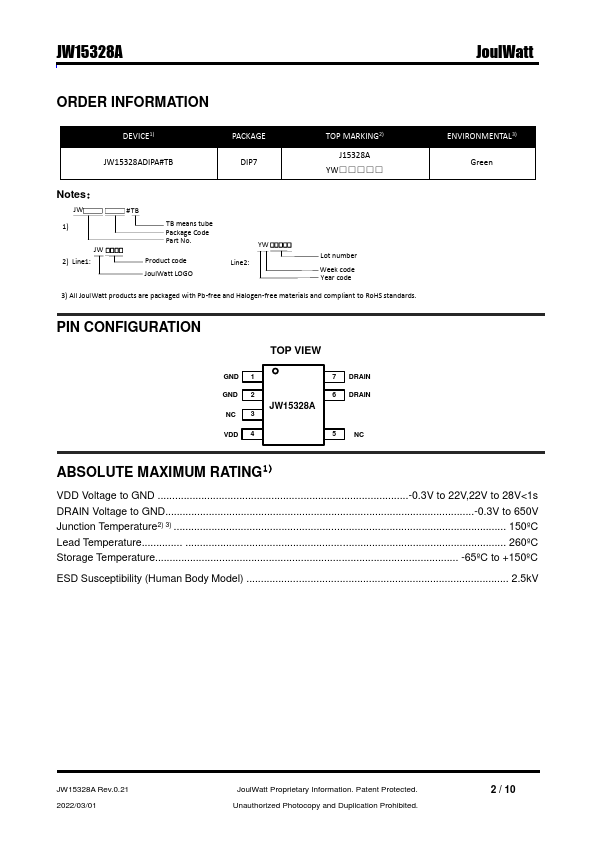

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
JW15328A
Manufacturer
JoulWatt
File Size
688.00 KB
Datasheet
JW15328A-JoulWatt.pdf
Description
High Efficiency Off-line CV Regulator
