JW1758C - Offline Step-down LED Controller

Product Overview

Part number	JW1758C
Manufacturer	SPMICRO
File Size	587.89 KB
Description	Offline Step-down LED Controller
Datasheet	JW1758C Datasheet
Note	This datasheet PDF includes multiple part numbers: JW1758C, JW1758A. Please refer to the document for exact specifications by model.

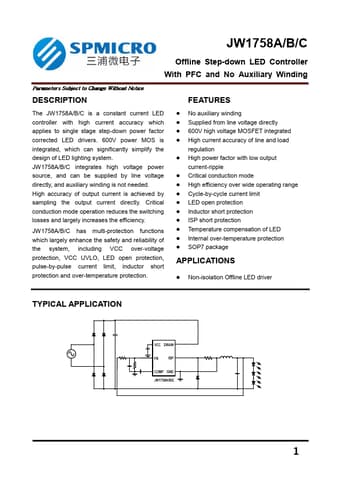

Additional preview pages of the JW1758C datasheet.

The JW1758A/B/C is a constant current LED controller with high current accuracy which applies to single stage step-down power factor corrected LED drivers. 600V power MOS is integrated, which can significantly simplify the design of LED lighting system. JW1758A/B/C integrates high voltage power source, and can be supplied by line voltage directly, and auxiliary winding is not needed. High accuracy of output current is achieved by sampling the output current directly. Critical conduction mode op.
