JW1660A Isolated Flyback LED Driver Regulator

JW1660M/JW1660A/JW1660B/JW1660C(JW166 0X series) is a primary side control constant current regulator with high current accuracy which applies to isolated flyback LED drivers. Operating in the discontinuous conduction mode makes it high efficiency and low radiation. Patented algorithms ensure good c.

JW1660A Features

* No Auxiliary Winding

* Excellent Line/load Regulation

* Universal Input

* DCM Operation

* High Efficiency

* LED Open Protection

* Over-temperature Protection

* SOP7 Package APPLICATIONS

* LED Driver With unique sampling techniques, JW1660X series has multi-prot

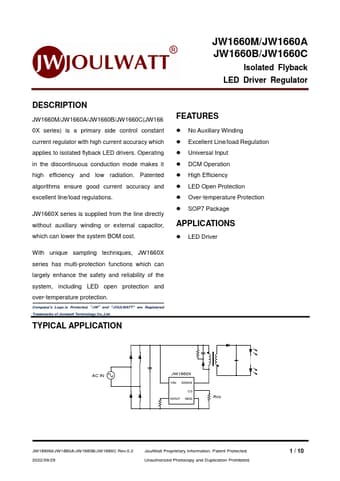

JW1660M-JoulWatt.pdf

JW1660A Datasheet Preview — This datasheet PDF includes multiple part numbers: JW1660A, JW1660M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

JW1660A, JW1660M

Manufacturer:

JoulWatt

File Size:

758.83 KB

Description:

Isolated flyback led driver regulator.

Note:

This datasheet PDF includes multiple part numbers: JW1660A, JW1660M.
Please refer to the document for exact specifications by model.
