JW7726BL Synchronous Rectifier Controller

JW®7726BL is a synchronous rectifier controller, used for the secondary side rectification of isolation topologies, such as Active Clamp Flyback and CCM/QR/DCM Flyback. By driving an external MOSFET, JW7726BL is able to significantly improve the efficiency comparing with the conventional Diode recti.

JW7726BL Features

* Supports Active Clamp Flyback, DCM, Quasi-Resonant, and CCM Flyback

* Support High-side and Low-side Rectification

* Output voltage directly supply VCC

* Low quiescent current

* Fast driver capability for CCM operation

* SOT23-6 package When JW7726BL senses Vds of MOSFET l

JW7726BL Datasheet (534.85 KB)

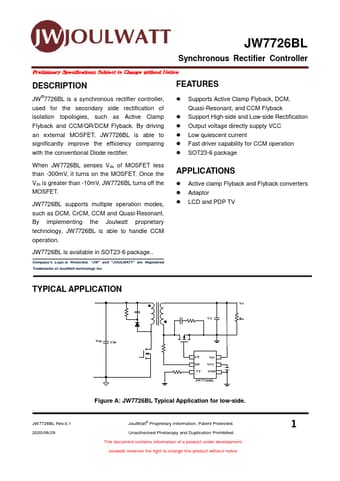

JW7726BL Datasheet Preview — Preview of JW7726BL PDF

Datasheet Details

Part number:

JW7726BL

Manufacturer:

JoulWatt

File Size:

534.85 KB

Description:

Synchronous rectifier controller.
