2EZ33D5, 2EZ2.7D5 Datasheet - KD

2EZ33D5, 2EZ2.7D5, 2W SILICON ZENER DIODE

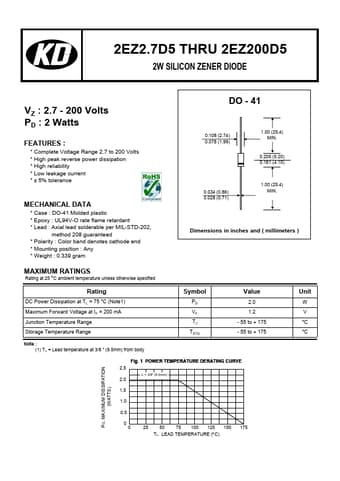

2EZ2.7D5 THRU 2EZ200D5 2W SILICON ZENER DIODE VZ : 2.7 - 200 Volts PD : 2 Watts .

2EZ2.7D5-KD.pdf

2EZ33D5 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2EZ33D5, 2EZ2.7D5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2EZ33D5, 2EZ2.7D5

Manufacturer:

File Size:

592.05 KB

Description:

2W SILICON ZENER DIODE

Note:

This datasheet PDF includes multiple part numbers: 2EZ33D5, 2EZ2.7D5.
Please refer to the document for exact specifications by model.

Features

* :
* Complete Voltage Range 2.7 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
* ± 5% tolerance MECHANICAL DATA
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-
