GBJ1001, GBJ10005, GLASS PASSIVATED BRIDGE RECTIFIER

GBJ10005 THRU GBJ1010 GLASS PASSIVATED BRIDGE RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 10.0 Ampere .

GBJ10005-KD.pdf

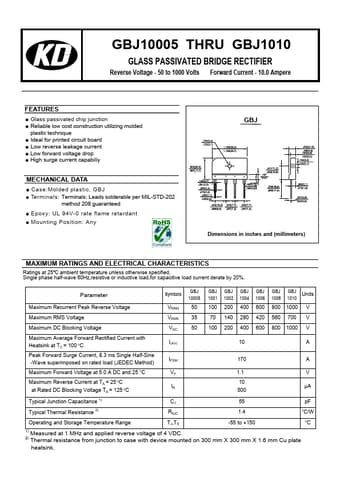

GBJ1001 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBJ1001, GBJ10005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBJ1001, GBJ10005

Manufacturer:

File Size:

793.22 KB

Description:

GLASS PASSIVATED BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: GBJ1001, GBJ10005.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip junction
* Reliable low cost construction utilizing molded plastic technique
* Ideal for printed circuit board
* Low reverse leakage current
* Low forward voltage drop
* High surge current capabiliy MECHANICAL DATA
* Case:Molded plastic, GBJ
