GBJ6005 GLASS PASSIVATED BRIDGE RECTIFIER

GBJ6005 Description

GBJ6005 THRU GBJ610 GLASS PASSIVATED BRIDGE RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 6.0 Ampere .

GBJ6005 Features

* Glass passivated chip junction
* Reliable low cost construction utilizing molded plastic technique
* Ideal for printed circuit board
* Low reverse leakage current
* Low forward voltage drop
* High surge current capabiliy MECHANICAL DATA
* Case:Molded plastic, GBJ

📥 Download Datasheet

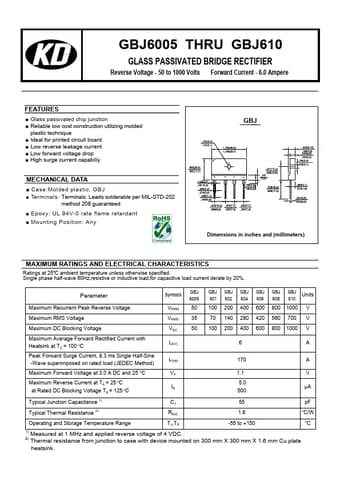

Preview of GBJ6005 PDF
datasheet Preview Page 2

Datasheet Details

Part number
GBJ6005
Manufacturer
KD
File Size
777.09 KB
Datasheet
GBJ6005-KD.pdf
Description
GLASS PASSIVATED BRIDGE RECTIFIER
