GBJ802, GBJ8005 GLASS PASSIVATED BRIDGE RECTIFIER

GBJ802 Description

GBJ8005 THRU GBJ810 GLASS PASSIVATED BRIDGE RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 8.0 Ampere .

GBJ802 Features

* Glass passivated chip junction
* Reliable low cost construction utilizing molded plastic technique
* Ideal for printed circuit board
* Low reverse leakage current
* Low forward voltage drop
* High surge current capabiliy MECHANICAL DATA
* Case:Molded plastic, GBJ

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBJ802, GBJ8005. Please refer to the document for exact specifications by model.

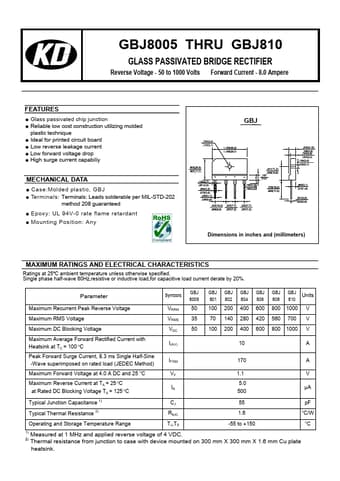

datasheet Preview Page 2

Datasheet Details

Part number
GBJ802, GBJ8005
Manufacturer
KD
File Size
788.97 KB
Datasheet
GBJ8005-KD.pdf
Description
GLASS PASSIVATED BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GBJ802, GBJ8005.
Please refer to the document for exact specifications by model.
