MB4M - MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER

MB4M Description

MB1M THRU MB10M MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER Reverse Voltage - 100 to 1000 Volts Forward Current - 0.8 Ampere .

MB4M Features

* Surge overload rating - 30 Amperes peak
* Ideal for printed circuit board
* Reliable low cost construction utilizing molded
* Glass passivated device
* Polarity symbols molded on body MECHANICAL DATA
* Case : MBM, Molded Plastic
* Epoxy : Device has UL flammability clas

📥 Download Datasheet

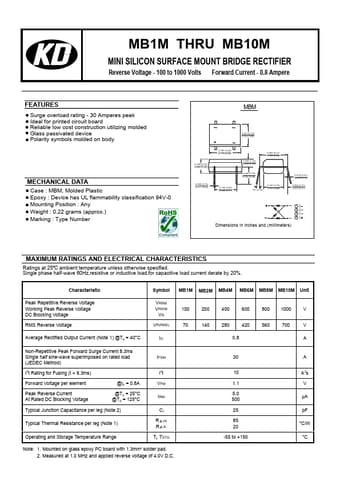

Preview of MB4M PDF
datasheet Preview Page 2

Datasheet Details

Part number
MB4M
Manufacturer
KD
File Size
801.61 KB
Datasheet
MB4M-KD.pdf
Description
MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER
