MBR2040CT, MBR2020CT, SCHOTTKY BARRIER RECTIFIER

MBR2020CT THRU MBR20100CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 20.0 Ampere .

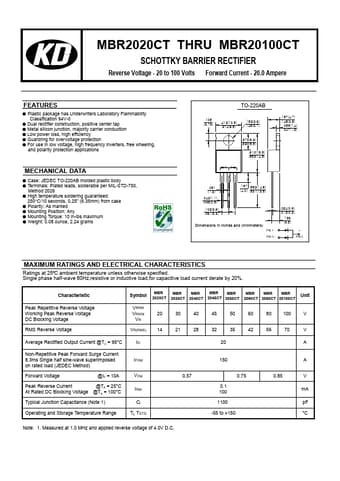

datasheet Preview Page 1 from Datasheet4u.com

MBR2020CT-KD.pdf

MBR2040CT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR2040CT, MBR2020CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR2040CT, MBR2020CT

Manufacturer:

File Size:

926.70 KB

Description:

SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: MBR2040CT, MBR2020CT.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Dual rectifier construction, positive center tap
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* Guardring for overvoltage protection
* For use in low v

Applications

* MECHANICAL DATA
* Case: JEDEC TO-220AB molded plastic body
* Terminals: Plated leads, solderable per MIL-STD-750, Method 2026
* High temperature soldering guaranteed: 250oC/10 seconds, 0.25" (6.35mm) from case
* Polarity: As marked
* Mounting Position: Any
* Mounting Torque:
