MBR2020CT - SCHOTTKY BARRIER RECTIFIER

MBR2020CT Description

MBR2020CT THRU MBR20100CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 20.0 Ampere .

MBR2020CT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Dual rectifier construction, positive center tap
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* Guardring for overvoltage protection
* For use in low v

MBR2020CT Applications

* MECHANICAL DATA
* Case: JEDEC TO-220AB molded plastic body
* Terminals: Plated leads, solderable per MIL-STD-750, Method 2026
* High temperature soldering guaranteed: 250oC/10 seconds, 0.25" (6.35mm) from case
* Polarity: As marked
* Mounting Position: Any
* Mounting Torque:

📥 Download Datasheet

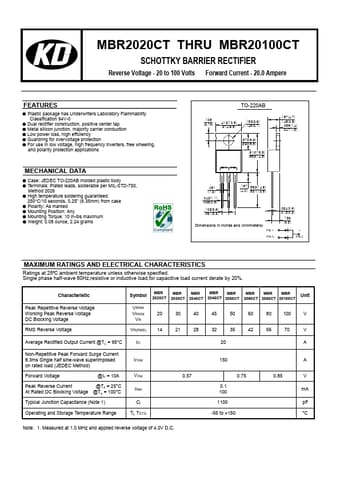

Preview of MBR2020CT PDF
datasheet Preview Page 2

Datasheet Details

Part number
MBR2020CT
Manufacturer
KD
File Size
926.70 KB
Datasheet
MBR2020CT-KD.pdf
Description
SCHOTTKY BARRIER RECTIFIER
