MBRF1020CT - SCHOTTKY BARRIER RECTIFIER

MBRF1020CT Description

MBRF1020CT THRU MBRF10100CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 10.0 Ampere .

MBRF1020CT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Dual rectifier construction, positive center tap
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* Guardring for overvoltage protection
* For use in low v

MBRF1020CT Applications

* MECHANICAL DATA
* Case: JEDEC ITO-220AB molded plastic body
* Terminals: Plated leads, solderable per MIL-STD-750, Method 2026
* High temperature soldering guaranteed: 250oC/10 seconds, 0.25" (6.35mm) from case
* Polarity: As marked
* Mounting Position: Any
* Mounting Torque:

📥 Download Datasheet

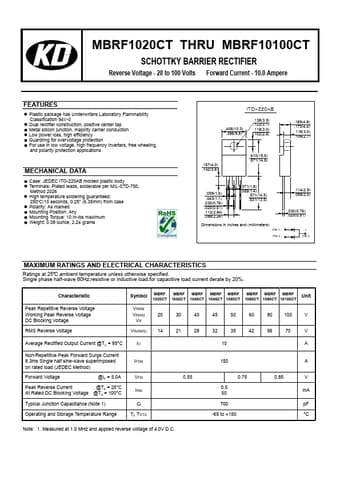

Preview of MBRF1020CT PDF
datasheet Preview Page 2

Datasheet Details

Part number
MBRF1020CT
Manufacturer
KD
File Size
779.54 KB
Datasheet
MBRF1020CT-KD.pdf
Description
SCHOTTKY BARRIER RECTIFIER
